SCM1

Product Description



20101116_0_SCM1(webR)

Special Component Mounter

■ Super-slim type mounter. (0.68m width: dedicated to odd shaped parts)

■ Applicable to odd shaped parts (~ □45mm) (based on tape feeder)

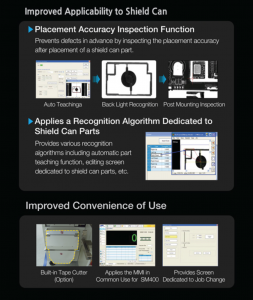

■ Improved applicability to odd shaped parts. Back light recognition, Shield Can placement accuracy inspection

■ Applicable for mixed production (option) Uses same type PCB (Top/Bottom)

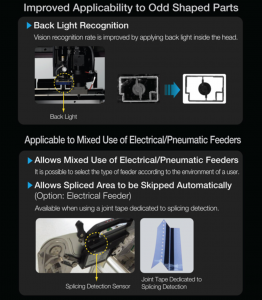

■ Applicable to mixed use of electrical/pneumatic feeders

■ Built-in tape cutter(option)

Placement Speed : Max. 3K CPH

Applicable Parts : ~ □45mm(H=15mm)

Placement Accuracy : ±50㎛@μ+3σ

Applicable PCBs : Max. L300ⅹW250ⅹ2lane
